Curling is the distortion of a slab into a curved shape by upward or downward bending of the edges. The occurrence is primarily due to differences in moisture and/or temperature between the top and bottom surfaces of a concrete slab. The distortion can lift the edges or the middle of the slab from the base, leaving an unsupported portion. The slab section can crack when loads exceeding its capacity are applied. Slab edges might chip off or spall due to traffic when the slab section curls upwards at its edges. In most cases, curling is evident at an early age. Slabs may, however, curl over an extended period.
Changes in slab dimensions that lead to curling are most often related to moisture and temperature gradients in the slab. When one surface of the slab changes size relative to the other, the slab will warp at its edges in the direction of relative shortening. This curling is most noticeable at the sides and corners. One primary characteristic of concrete that affects curling is drying shrinkage. Anything that increases drying shrinkage of concrete will tend to increase curling.

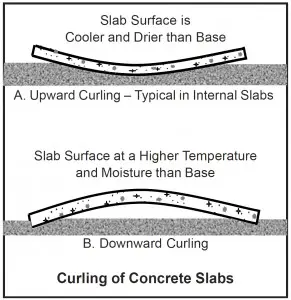

The most common occurrence of curling is when the top surface of the slab dries and shrinks with respect to the bottom. This causes an upward curling of the edges of a slab (Figure 1A). Curling of a slab soon after placement is most likely related to poor curing and rapid surface drying. In slabs, excessive bleeding due to high water content in the concrete or water sprayed on the surface, or a lack of surface moisture due to poor or inadequate curing, can create increased surface drying shrinkage relative to the bottom of the slab. Bleeding is accentuated in slabs placed directly on a vapor retarder (polyethylene sheeting) or when topping mixtures are placed on concrete slabs. Shrinkage differences from top to bottom in these cases are larger than for slabs on an absorptive subgrade.
Thin slabs and long joint spacing tend to increase curling. For this reason, thin unbonded toppings need to have a fairly close joint spacing.
In industrial floors, close joint spacing may be undesirable because of the increased number of joints and increased joint maintenance problems. However, this must be balanced against the probability of intermediate random cracks and increased curling at the joints.
The other factor that can cause curling is temperature differences between the top and bottom of the slab. The top part of the slab exposed to the sun will expand relative to the cooler bottom causing a downward curling of the edges (Figure 1B). Alternately, during a cold night when the top surface cools and contracts relative to the bottom surface in contact with a warmer subgrade, the curling due to this temperature differential will add to the upward curling caused by moisture differentials.
The primary factors controlling dimensional changes of concrete that lead to curling are drying shrinkage, construction practices, moist or wet subgrades, and day-night temperature cycles. The following practices will help to minimize the potential for curling:
When curling in a concrete slab application cannot be tolerated alternate options include the use of shrinkage reducing admixtures, shrinkage-compensating concrete, post tensioned slab construction or vacuum dewatering. These options should be decided before the construction and could increase the initial cost of the project.
Some methods of remedying slab curling include ponding the slab to reduce curl followed by sawing additional contraction joints, grinding slab joints where curling has occurred to restore serviceability and injecting a grout to fill voids under the slab to restore support and prevent break-off of uplifted edges.
